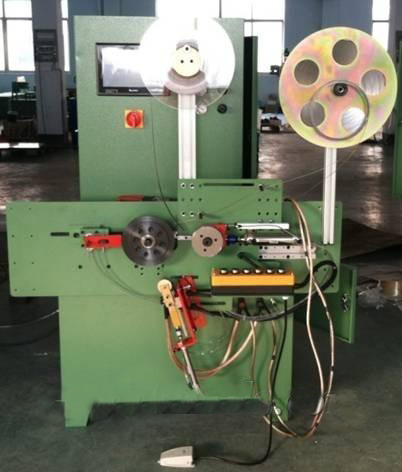

Medium Size Semi-Automatic Winding Machine
This machine was designed to winding gasket from 150 to 1200mm diameter spiral wound gasket. Both manual model and automatic model available. Can winding any shape of SWG
|
Specification
as following:： |
||
|
KXT E1200S
Medium size winding machine |
||
|
STYLE |
KXT E1200S-B
Manual |
KXT E1200S-C
Semi-automatic |
|
Producing
ability |
spiral
wound gasket with or without inner ring |
spiral
wound gasket with or without inner ring |
|
Special
function |
any
shape of SWG |
any shape of
SWG |
|
SWG
thickness |
4.5mm
(also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape
winding or W shape winding) |
4.5mm
(also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape
winding or W shape winding) |
|
Automatic
function |
/ |
PLC
size controlling, |
|
Maximum
gasket OD |
1000mm |
1000mm |
|
Minimum
gasket ID |
100mm |
100mm
|
|
Total
power |
2.2kw |
8kw |
|
Spindle
motor power |
1.5kw |
1.5kw |
|
welder
power |
/ |
6kw |
|
Frequency
Converter |
2.2G |
2.2G |
|
PLC |
/ |
xinjie |
|
Power
supply voltage |
380V/220V
for option, 3 phases |
380V/220V
for option, 3 phases |
|
linear
speed |
0-800mm/s |
0-800mm/s |
|
Air
compressor |
0.6—0.8
MPA |
0.6—0.8
MPA |
|
Machine
measurement |
1680*1500*920MM |
1680*1500*950MM |
|
Machine
net weight |
280
kg |
300
kg |
