Lens Ring Joint Gasket
From China Lens Ring Joint Gasket manufacturer Kaxite professional supplying Lens Ring Joint Gasket. If you need Lens Ring Joint Gasket, please feel free to contact us!
-
Double Jacket Gasket
From China Double Jacket Gasket manufacturer Kaxite professional supplying Double Jacket Gasket. If you need Double Jacket Gasket, please feel free to contact us!
-
Corrugated Gaskets
From China Corrugated Gaskets manufacturer Kaxite professional supplying Corrugated Gaskets. If you need Corrugated Gaskets, please feel free to contact us!
-
PTFE Envelope Gasket
From China PTFE Envelope Gasket manufacturer Kaxite professional supplying PTFE Envelope Gasket. If you need PTFE Envelope Gasket, please feel free to contact us!
-
Rubber Sheet
From China Rubber Sheet manufacturer Kaxite professional supplying Rubber Sheet. If you need Rubber Sheet, please feel free to contact us!

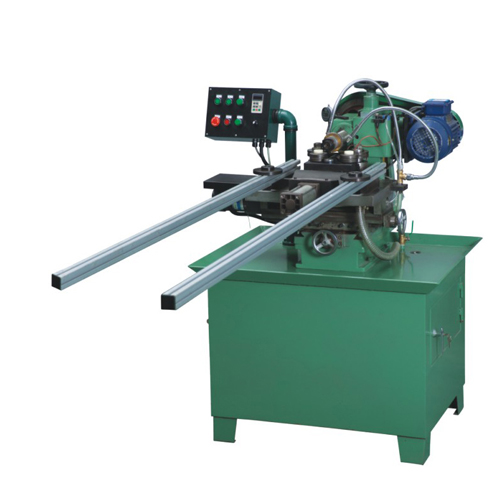

Kammprofile Gasket Machine
Kammprofile pitch both 1.0 and 1.5mm available. HSS saw blades and Alloy blade in set for option.
| Specification as following: | |
| STYLE |
KXT E1300 Kammprofile gasket machine |
| Gasket thickness | 3 -- 4mm |
| Gasket width | 10--50mm |
| Maximum gasket OD | 4000mm |
| Minimum gasket ID | 280mm |
| type of tooth | 1.5mm or 1.0mm pitch tooth, or wave tooth |
| Total power | 4kw |
| Spindle motor power | 1.5kw |
| Spindle speed | 0--1200 rpm |
| Feed motor power | 0.4kw |
| Feed linear speed | 0--20mm/s |
| Frequency Converter | 2.2G 0.4G |
| Power supply voltage | 380V/220V, 3phases, for option |
| Air compressor | 0.6-0.8 MPA |
| Machine measurement | 800*1000*1360mm |
| Machine net weight | 500kg |
