Lens Ring Joint Gasket
From China Lens Ring Joint Gasket manufacturer Kaxite professional supplying Lens Ring Joint Gasket. If you need Lens Ring Joint Gasket, please feel free to contact us!
-
Double Jacket Gasket
From China Double Jacket Gasket manufacturer Kaxite professional supplying Double Jacket Gasket. If you need Double Jacket Gasket, please feel free to contact us!
-
Corrugated Gaskets
From China Corrugated Gaskets manufacturer Kaxite professional supplying Corrugated Gaskets. If you need Corrugated Gaskets, please feel free to contact us!
-
PTFE Envelope Gasket
From China PTFE Envelope Gasket manufacturer Kaxite professional supplying PTFE Envelope Gasket. If you need PTFE Envelope Gasket, please feel free to contact us!
-
Rubber Sheet
From China Rubber Sheet manufacturer Kaxite professional supplying Rubber Sheet. If you need Rubber Sheet, please feel free to contact us!

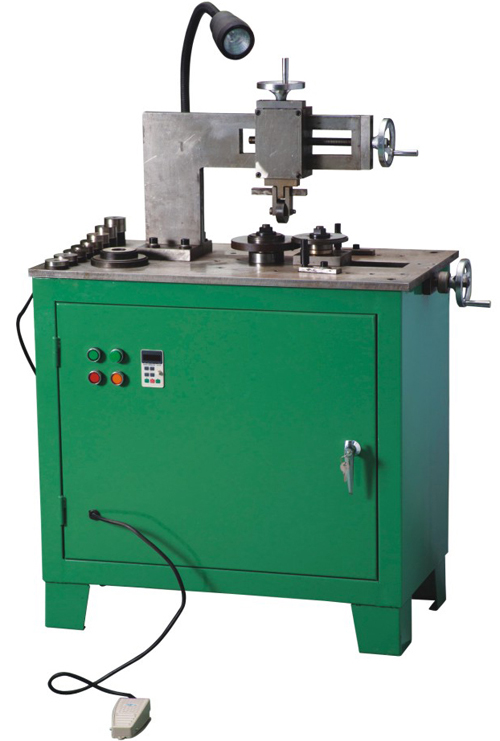

Double Jacketed Gasket Machine
Special designed to produce double jacketed gasket:1.5-8.0mm thick, width≤80mm, diameter 150-4000mm.
KXT E1410 style machine is special designed to produce double jacketed gasket.
80mm, diameter
150-4000mm.
| Specification as following: | |
| STYLE | KXT E1410 Double Jacketed Gasket Machine |
| Double Jacketed gasket thickness | 1.5---8mm |
| Double Jacketed gasket width |
80mm(Standard
machine package include models for 8 different width, other width models
availabe for cutom-made)
|
| Maximum gasket OD | 4000mm |
| Minimum gasket ID | 150mm |
| Total power | 4kw |
| Spindle motor power | 1.5kw |
| Power supply | 380V/220V as request, 3 phases |
| linear speed | 0--150mm/s |
| Frequency Converter | 2.2G |
| Machine measurement | 900*500*1200mm |
| Machine net weight | 200kg |
